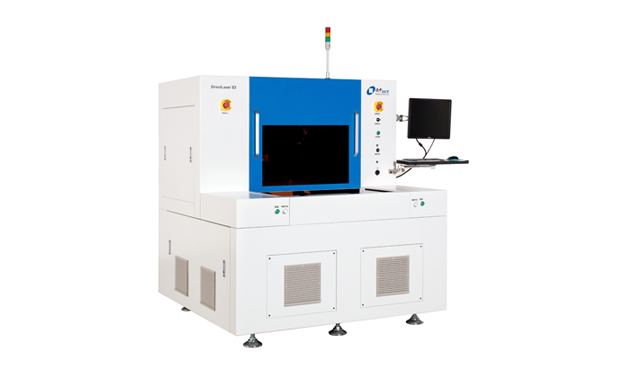

DirectLaser SA3 Standard Format Double Platform Laser Precision Cutting Equipment
DirectLaser SA3 adopts dual-table design, which saves the loading and unloading time, and keeps the laser always in the processing state. The processing area of S3 is 350mmx500mm, which is suitable for depaneling placed PCBs, open cover film window and other processes in SMT industry. It can also be equipped with camera target pre-positioning system, saving the processing time due to target positioning.
Features
Directly data driven
High level automation
Break through mechanical limits
Precise laser control
Cold cutting with picosecond Laser
Product parameters
Technical data | DirectLaser SA3 |
Laser power | 15W （±2W） |
Laser wavelength | 355nm |
Working area | 350mm x 500mm （Double platform） |
Platform | Granite table and linear motor |
X/Y/Z resolution | 1μm |
Repetitive accuracy | ≤±2μm |
Data processing software | CircuitCAM 7 Standard |
System operating software | DreamCreaTor 3 |
Automatic feed | Optional |
Automatic CCD camera fiducial positioning | Optional |
Exhaust unit | Optional |
Dimension（W x H x D) | 1,600mm x 1,600mm x 1,950mm |
Weight | 2,500kg |
Power requirements | 380VAC/50Hz,3.5kW |
Operation temperature | 22℃±2℃ |
