DirectLaser U5 Laser Multifunctional Microfabrication Equipment

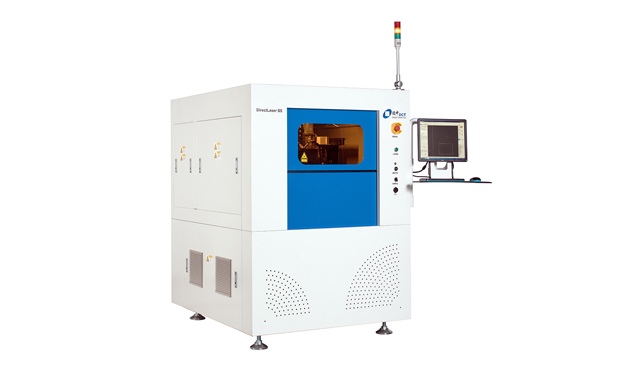

DirectLaser U5 is a classical U-series model, which adopts classical bridge structure, i.e. X-axis and Y-axis separated motion structure. The processing head moves around X-axis on stable bridge, and the workpiece clamping table moves around Y-axis. The two systems are independent, and their respective movements do not interfere with each other.
Features
Precise laser control
Precision drilling micro holes
Unification of Multi-functional
High quality ceramics cutting
Perfect in micron level
Product parameters
Technical data | DirectLaser U5 |
Laser wavelength | 355nm |
Repetitive accuracy | ≤±2μm |
Scan field X/Y resolution | 1μm |
X/Y resolution | ≤0.5μm |
Working area | 520mm x 500mm |
Data acceptance | Gerber, HPGL, Sieb & Meier, Excellon, ODB++, DXF |
Platform structure | Granite table, bridge |
Dimension (W x H x D) | 1,560mm x 1,250mm x 1,915mm |
Weight | Approx. 1,500kg |
Operating ambient | DirectLaser U5 |
Power requiements | 380VAC/50Hz, 3kW |
Ambient temperature | 22℃±2℃ |
Configuration and options | DirectLaser U5 |
Data processing software | CircuitCAM 7 |
Machine operating software | DreamCreaTor 3 |
Automatic feeding | Optional |
Online laser power measurement | N/A |
Laser height measurement | Optional |
Camera automatic positioning | Included |
Exhaust unit | 210m?/hr, 220V, 1.5kW |
Workpiece fixture | Vacuum table, customizable fixture |
FFU positive pressure cleaning device | N/A |
