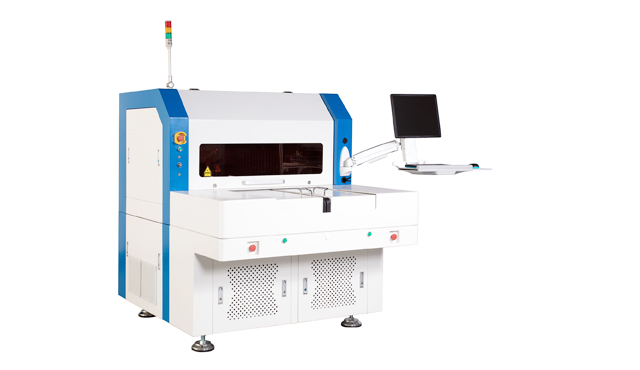

Based on DCT S&S technology, DirectLaser PC6 could process an 80mm x 100mm conductive pattern on PCB in just a few minutes. The system could also have drilling and Routing functions when it equipped with green, UV, picosecond, or femtosecond ultrashort pulse laser source. In this way, in addition to the hole metallization and lamination process, making PCB easily like printing on a single machine is realizabl.

S&S direct laser circuit technology could ensure wire geometric error of 5 micron or even 3 microns, and keep the original copper surface clean, especially suitable for making impedance, high-speed IF, microwave circuits, and other expensive, special demand high-end PCBs. There is no need to use optical mask or other tools to do the drawing Shape transfer, no chemicals, no chemical-related pre-treatment and post-treatment process. The innovative S&S direct laser circuit technology with the feature of precision, accurate, simple, flexible, and environment friendly make circuit manufacturing quality, efficiency and cost advantages.
