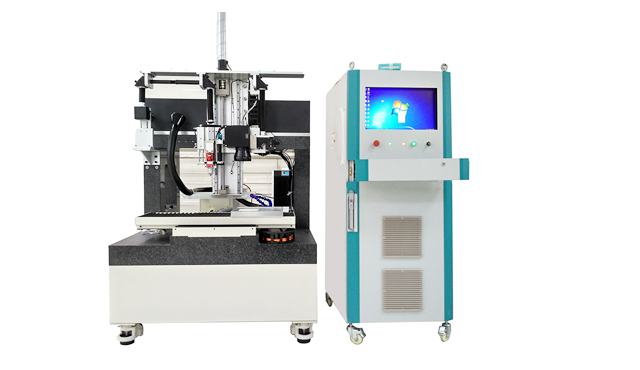

DirectLaser U1 Laser Multifunctional Microfabrication Equipment
DirectLaser U1 is a multi-functional experimental platform, equipped with independent electrical cabinet and optical installation board, which is convenient for customers to rebuild according to different applications.
Features
Integrated Optical Platform
Real equipment form
Speed and Accuracy
Integrated optical platform
Configuration of CAM Software
Product parameters
Technical data | DirectLaser U1 |
X/Y resolution | 1μm |
X/Y drive type | Linear motor |
Working area | 300mm x 300mm |
Z axis travel length | 300mm |
Repetitive accuracy | ≤±2μm |
Device dimension (W x H x D) | 1,240mm x 1,870mm x 1,240mm |
Control cabinet dimension (W x H x D) | 600mm x 1,600mm x 800mm |
Platform | Granite platform, bridge structure |
Weight | 1.5T |
| Configuration and options | DirectLaser U1 |
Data processing software | CircuitCAM 7 Standard |
Machine operating software | DreamCreaTor 3 |
Control cabinet | Included |
Industrial exhaust unit | Included |
Industrial control PC and monitor | Included |
Vacuum table for workpiece fixation | Included |
Operating ambient | DirectLaser U1 |
Power | 380VAC/50Hz,2.5kW |
Ambient temperature | 22℃±2℃ |
