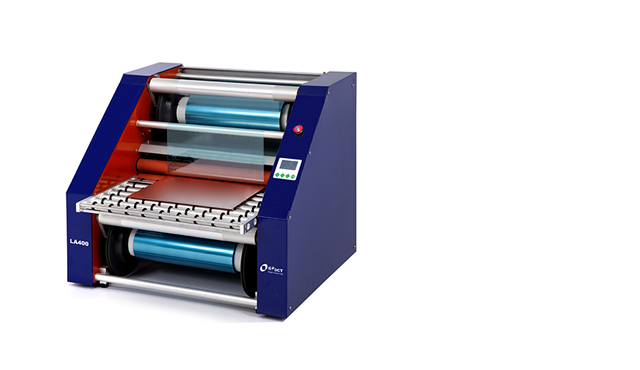

LA Series Dry Film Laminator
The LA series laminator is used for the lamination of photosensitive film and solder mask on PCB or other substrates. Pressure and speed can be adjusted according to different materials. It is a tabletop equipment specially designed for thermal pressing and laminating in PCB industry. The equipment can accurately control the pressing temperature, and equipped with a film roller to gather the protective film.
Features
Suitable for wide application
Suitable for processing hard board, flexible board, ceramic substrate, silicon wafer, quartz glass, etc
Suit for varieties of film
Photosensitive film, solder resist film, polyimide film
Adjustable pressure regulator
The upper and down pressure roller equipped with pressure regulator, ensure bubble-free, wrinkle free lamination
Easy loading and unloading
Easy loading and unloading with stepless speed adjustment
Product parameters
Technical data | LA400 |
Lamination width | Max. 400mm |
Board thickness | 0.2 ~ 3mm |
Lamination speed | 0.2 ~ 1.2m/min |
Temperature range | 20 ~ 200℃ |
Power supply | 220VAC/50Hz, 0.7kW |
Dimension (W x H x D) | 790mm x 590mm x 550mm |
Weight | 35kg |
