CircuitCAM7 Pro, is used to design the opening of stencil, is a necessary software for laser precision stencil cutting machine. Besides professional data processing personnel, SMT engineers can also use it to design stencil by themselves.

In the SMT industry, CircuitCAM the only professional software, got widely used. Comparing with the Standard version, the Pro version is strengthened with graphics editing and library function, including GMC-Geometric Graphics Manipulation Center, which is used to systematically modify the shape of open holes globally or locally. Compared with the CircuitCAM 6, CircuitCAM7 Pro has substantially improved its performance and user experience, is more automatic and easier to use.

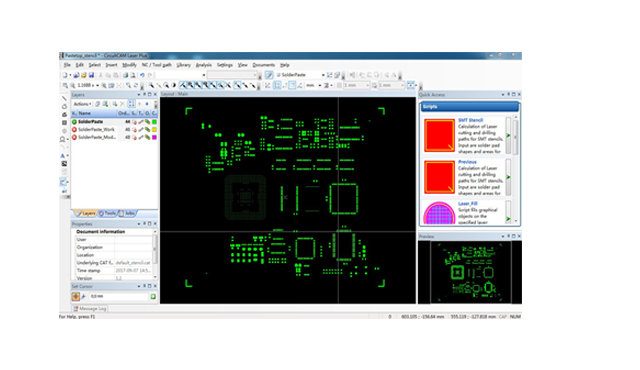

The smooth operation experience can create a joyful working atmosphere to some extent. CircuitCAM7 Pro can add a quick action bar of the icon and allows the operator to make personalized CircuitCAM desktop. The software sets a preview window which can be easily positioned one concrete detail of multiple graphic data，the function allows operator keeping in global overview status while doing detailed graphic operation, so as is released from repetitive operation of zooming out, moving and zooming in for detail positioning.

As a professional software, CircuitCAM7 Pro has unique functions in SMT stencil data processing and opening design for high quality solder paste printing.
